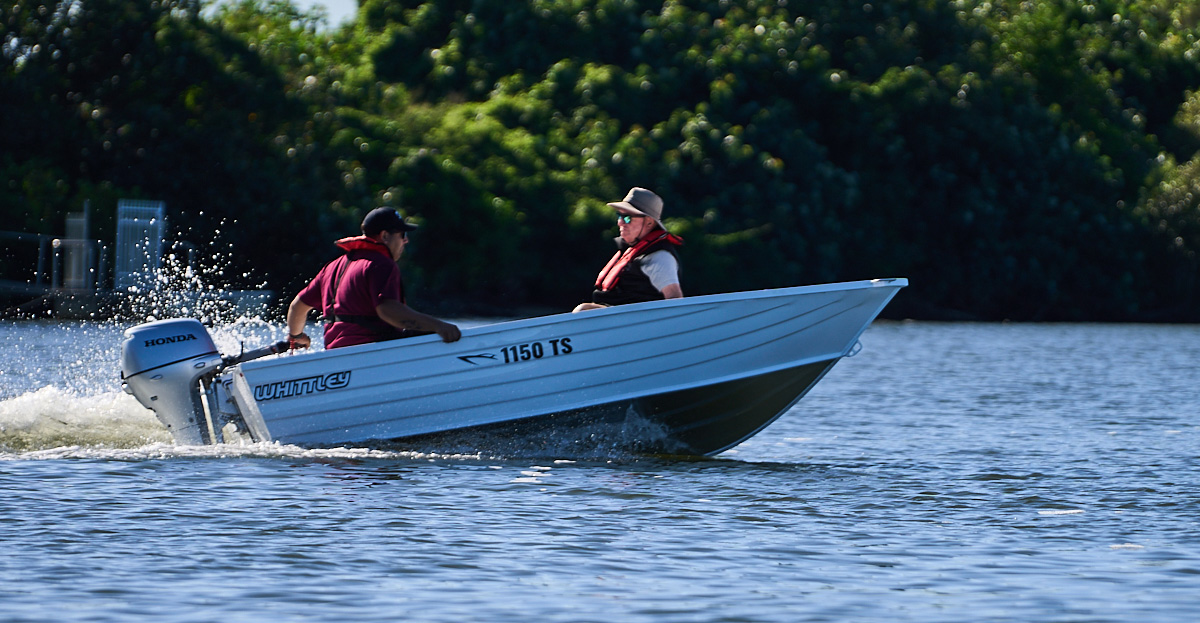

al 1150 ts

Standard Specifications

AL 1150 TS Technical Specifications
Max People 2
Overall Length 3.55m
Length on Trailer 5.00m*
Height on Trailer 1.48m* [top of windscreen]
Width on Trailer 2.10m
Beam 1.65m
Bottom Sheet 1.6mm
Side Sheet 1.6mm
Fuel Capacity 12L (portable tank)
Dry Towing Weight (base boat package) 365kg** [approximately]

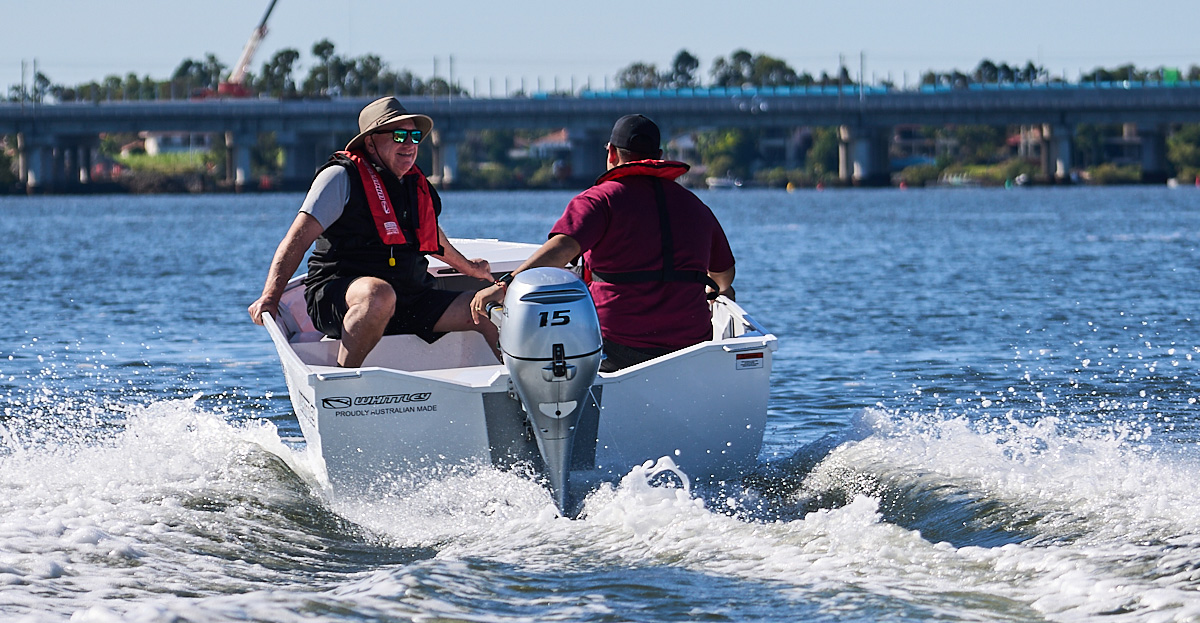

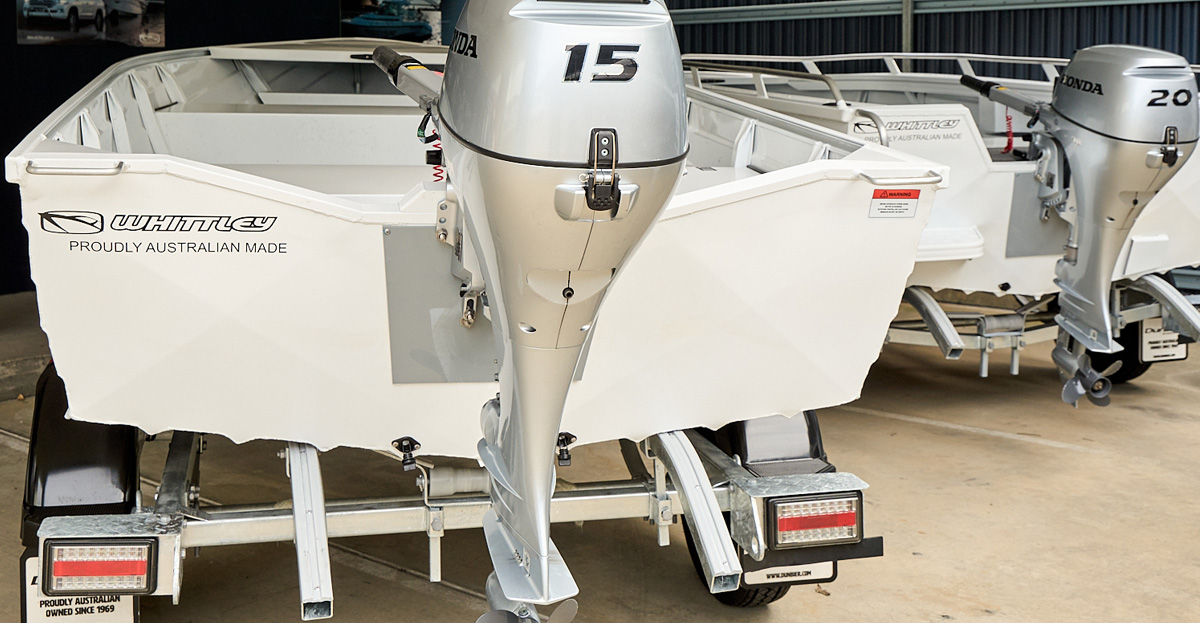

Standard Engine Honda BF15 DK2
Maximum Horsepower 15hp
Maximum Weight On Transom 50kg

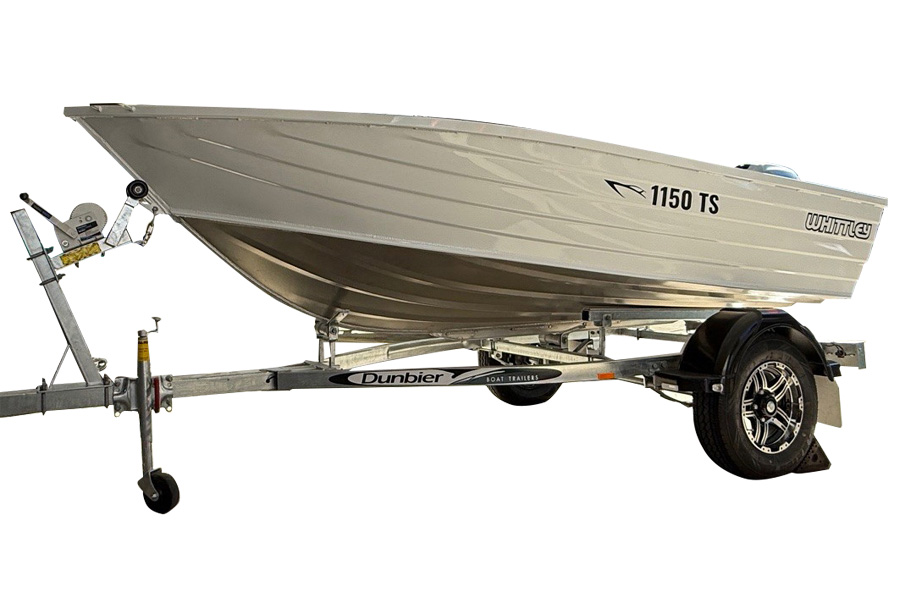

Standard Dunbier Trailer Sports 4M-13SL





Standard Equipment

12L (Portable Tank)

Anchor, Rope & Chain Combination

CAD Designed Whittley Hull

Honda BF15 DK2 LHU

Mounted Fire Extinguisher

Paint Inside & Out White

Victorian Inshore Safety Kit



Get a Quote

^ The Manufacturers Recommended Retail Price (MRRP) is the estimated drive away price for private Australian customers only for the standard base Whittley BMT package, as per the standard equipment list for that particular model boat package. The estimated drive away price includes all local taxes, minimal dealer pre-delivery costs, freight from the Whittley Factory Melbourne to the closest capital city in each state (except Darwin), basic marine safety equipment and 12 months registration costs on the Trailer and Boat. The actual estimated drive away price may vary and freight surcharges apply for delivery outside the standard capital city in any given Australian state.
^^ The MLP (Manufacturers List Price) is the price for the individual factory supplied options. Estimated drive away prices cannot be calculated until all options are selected. Pricing information will be supplied via email to the consumer once the build a boat feature on the website is completed.
^^^ Please consult with your Authorized Whittley Dealer or Whittley Company Representative for the most up to date information about the features, specifications, prices, and optional equipment and availability, before you decide to place an order. This material is provided for information purposes only and while every effort is made to produce the most up to date information, it is not always possible. The images produced have been made to accurately depict colors on this site, however due to differences in computer equipment, some variations may occur. Images shown are for demonstration purposes only, Whittley reserves the right to change option items show at any time, as and when required without updating the image online. Image option shown may be from another model boat and are generic and a guide only in nature. Whittley reserves the right to make changes to the information presented without prior notification. * The height and length on trailer measurement can be reduced or lowered upon request. For example, a swing away draw bar option is available to reduce the overall length. Please talk to your local dealer for more information. The measurements supplied are to be used as a guide only and may vary from time to time. Weights and measurements listed in this catalogue are as occure as can reasonably be determined and can be subject to change. Weights and measures are approximate only and are considered a guide these can vary up to plus 15%. Whittley does not take any responsibility for weights and measurement accuracy therefore these should be checked by the dealer or customer if this is a requirement that is deemed critical for the use or before purchase of any vessel. To confirm the measurements before making a purchase, consult your Authorized Whittley Dealer or Whittley Factory Sales Representative.
** Dry towing weight is an approximate guide and is a best-case scenario, this may vary and is the approximate base package weight with no options. The addition of factory supplied options will increase the total Boat Motor Trailer (BMT) package weight. Consult your Authorized Whittley Dealer or Whittley Factory Sales Representative for more information regarding towing weights and post purchase consult your owner’s manual. Consult generic disclaimer for more information. Boat packages on trailers with ratings over 3,500 kg will require a 70mm tow ball, this is available to customers at additional cost at purchase.
*** Boat trailer packages on a mechanically braked trailer with an ATM of 2,200 kg rating and a GVM rating of 2,000 kgs.’, require 10% of the package weight to be on the tow ball as down weight. For more information regarding this, please consult your owner's manual or Authorized Whittley Dealer or Whittley Factory Sales Representative for more information.
